A Complete Guide to Rod End Bearings: Function, Types, and Applications

Rod end bearings, also known as heim joints or spherical rod ends, are mechanical joints that provide a pivoting connection between two parts. These bearings are essential in applications requiring precise movement, stability, and the ability to handle misalignment. They play a vital role in automotive, aerospace, industrial machinery, and agricultural equipment.

In this blog, we’ll dive into the structure, types, applications, and benefits of rod end bearings, as well as how to choose and maintain the right one for your needs.

What Is a Rod End Bearing?

A rod end bearing is a mechanical component with a ball-and-socket joint design. The inner ball has a hole through which a bolt or shaft can pass, and the outer housing allows it to rotate freely. This design enables smooth rotational and angular movement, even under conditions where parts may be slightly misaligned.

Rod end bearings are popular in applications where vibration or oscillating movement occurs, making them ideal for linkages, control arms, and steering systems.

Key Components of Rod End Bearings

1. Inner Ball (Spherical Bearing):

  The ball provides a surface for rotation and is pierced with a bore to accommodate a shaft or bolt.

2. Outer Housing (Body):

  The outer housing supports the ball and maintains its position while allowing free movement.

3. Threaded Shank:

  The shank can be male (external) or female (internal) threaded to connect with other mechanical parts.

4. Lubrication Path:

  Some rod ends include grease fittings to ensure smooth operation and reduce wear over time.

Types of Rod End Bearings

1. Male and Female Rod Ends

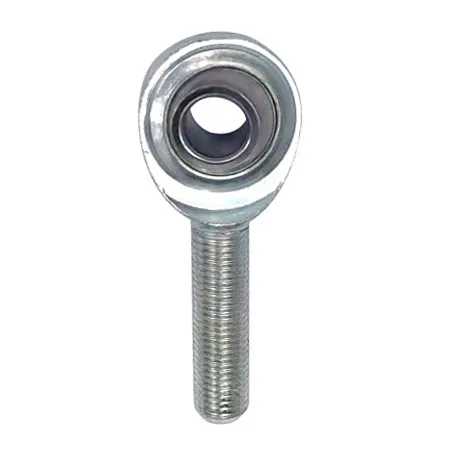

- Male rod ends: Feature external threads on the shank.

- Female rod ends: Have internal threads for easy attachment.

These two types are used interchangeably based on the design requirements of the machine or assembly.

2. Self-Lubricating vs. Non-Self-Lubricating Bearings

- Self-lubricating rod ends: Use PTFE or other low-friction materials to reduce the need for regular lubrication.

- Non-self-lubricating rod ends: Require periodic greasing to ensure smooth movement.

3. Right-Hand and Left-Hand Threaded Bearings

Rod ends can have right-hand or left-hand threads to allow for easy adjustment in control systems.

4. Heavy-Duty Rod Ends

Designed to withstand high loads and heavy vibrations, heavy-duty rod ends are used in applications like construction machinery and racing vehicles.

Applications of Rod End Bearings

1. Automotive Industry

Rod end bearings are commonly used in steering linkages, suspension systems, and control arms to allow smooth movement and compensate for alignment shifts.

2. Aerospace Industry

In aircraft, these bearings are used in flight control systems to ensure smooth pivoting and load handling under extreme conditions.

3. Industrial Machinery

Rod ends are essential in conveyor systems, hydraulic cylinders, and robotic arms, where precise movement and flexibility are crucial.

4. Agriculture and Construction Equipment

Heavy machinery, such as tractors and excavators, relies on rod end bearings to ensure proper articulation and load distribution.

5. Motor Racing and Performance Vehicles

In motorsport, rod end bearings are used in suspension setups for enhanced control and durability under high stress.

Advantages of Rod End Bearings

1. Handles Misalignment:

  The spherical design allows the bearing to accommodate angular misalignments, improving the system’s flexibility.

2. Durability:

  Rod end bearings are designed to handle high loads and resist wear, even in harsh environments.

3. Compact Design:

  Their small footprint makes them suitable for use in confined spaces where other joints might not fit.

4. Easy to Install and Adjust:

  The threaded shank allows for quick installation and precise adjustments in control systems.

5. Cost-Effective:

  Compared to other types of joints, rod end bearings offer an affordable solution for motion control systems.

Disadvantages of Rod End Bearings

1. Wear and Tear:

  Bearings without proper lubrication may experience friction and wear over time.

2. Limited to Specific Angles:

  While rod end bearings allow some angular movement, they may not be suitable for extreme misalignments.

3. Exposure to Corrosion:

  In outdoor applications, rod ends made from standard steel can be prone to corrosion, though stainless steel or coated variants mitigate this issue.

How to Choose the Right Rod End Bearing

1. Load Capacity:

  Ensure the bearing can handle the maximum load your application requires, both static and dynamic.

2. Thread Type:

  Choose between male or female threads based on how the bearing will connect with other components.

3. Angle of Misalignment:

  Determine the level of angular movement needed to ensure the bearing won’t bind or restrict motion.

4. Material:

  For corrosive environments, use stainless steel or coated bearings. For high-stress environments, opt for hardened steel or chrome-plated options.

5. Self-Lubricating Options:

  Consider self-lubricating bearings for applications that need minimal maintenance.

Maintenance Tips for Rod End Bearings

- Regular Inspections:

 Check the bearings periodically for wear, corrosion, or play.

- Lubrication:

 Apply grease to non-self-lubricating bearings to reduce friction and extend lifespan.

- Cleanliness:

 Keep the bearings free from dirt and debris, especially in outdoor applications, to prevent damage.

- Check for Looseness:

 Ensure the bearing and threaded connections are tight to avoid misalignment and system failure.

Conclusion

Rod end bearings are essential components in industries that require precise movement and articulation. With their ability to handle misalignments and high loads, they are indispensable in automotive, aerospace, industrial machinery, and many other fields.

By choosing the right type of rod end bearing for your specific needs and following proper maintenance practices, you can ensure optimal performance and longevity. Whether you’re designing control arms, steering systems, or hydraulic cylinders, rod end bearings provide a reliable and cost-effective solution for your motion control requirements.
