Characteristics of Automatic Butt Fusion Machine

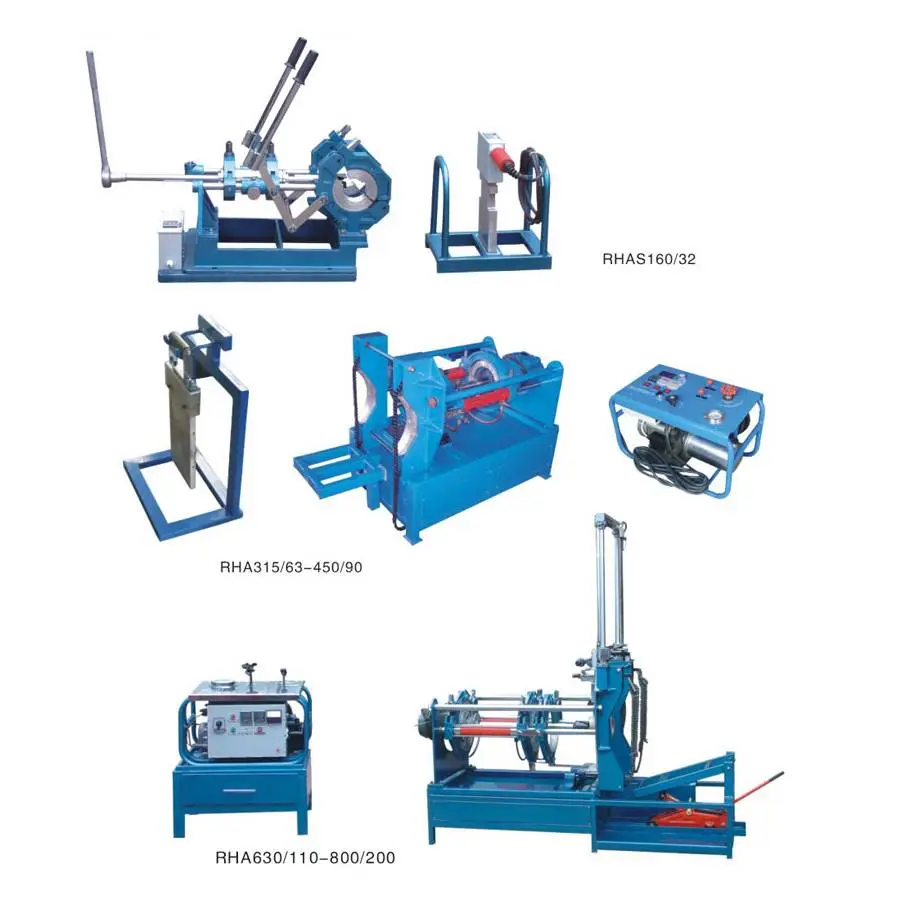

An automatic butt fusion machine is used for joining thermoplastic pipes and fittings through the butt fusion welding process. This technique involves heating the ends of the pipes or fittings and then pressing them together to create a strong, continuous joint. Automatic butt fusion machines are designed to improve the precision, efficiency, and consistency of the welding process. Here’s a detailed overview of their characteristics:

1. Machine Type

- Automatic vs. Manual: Automatic butt fusion machines are designed for fully automated operation, reducing the need for manual intervention and increasing efficiency compared to manual or semi-automatic machines.

- Hydraulic or Electric: Many automatic machines use hydraulic systems to apply pressure, while others may use electric motors.

2. Construction and Material

- Frame: Typically constructed from high-strength steel or aluminum for durability and stability.

- Clamps: Equipped with clamping systems to hold the pipes securely during the fusion process.

- Heating Plate: Includes a heating element or plate for melting the pipe ends, usually made from high-quality materials to ensure even heating and durability.

3. Operating Controls

- Digital Interface: Features a digital control panel for setting and monitoring parameters such as temperature, pressure, and time.

- Programmable Logic Controller (PLC): Often includes a PLC for precise control over the fusion process and to automate sequences.

- Touchscreen: Some models come with a touchscreen interface for user-friendly operation and control.

4. Pipe Size and Compatibility

- Range: Capable of fusing a wide range of pipe sizes, from small diameter pipes to large-diameter ones, depending on the machine model.

- Adapters and Dies: Equipped with interchangeable adapters or dies to accommodate different pipe sizes and fittings.

5. Fusion Process

- Heating: Pipes or fittings are heated to a specified temperature using a heating plate or element.

- Alignment: Automatic alignment systems ensure proper alignment of pipe ends before fusion.

- Pressure: Hydraulic or pneumatic systems apply controlled pressure to fuse the pipe ends together.

- Cooling: Controlled cooling cycles are used to ensure the joint solidifies properly.

6. Precision and Quality

- Temperature Control: Advanced temperature control systems ensure consistent heating and prevent overheating or underheating.

- Pressure Control: Precise pressure application ensures a strong and consistent weld.

- Data Logging: Some machines include data logging features to record welding parameters and ensure compliance with standards.

7. Safety Features

- Automatic Shutdown: Safety mechanisms for automatic shutdown in case of malfunctions or deviations from set parameters.

- Overheat Protection: Prevents overheating of the heating plate and other components.

- Emergency Stop: Includes an emergency stop button for immediate cessation of operation in case of an emergency.

8. Efficiency and Productivity

- Speed: Faster welding cycles compared to manual or semi-automatic machines, increasing overall productivity.

- Consistency: Automated control ensures consistent weld quality and reduces the likelihood of human error.

- Reduced Labor: Minimizes the need for manual labor and operator intervention during the welding process.

9. Portability and Size

- Portable Models: Some automatic butt fusion machines are designed to be portable for use in field applications.

- Fixed Models: Larger, fixed models are used in workshop environments for high-volume production.

10. Maintenance

- Regular Maintenance: Requires regular maintenance of the heating plate, clamping system, and hydraulic or pneumatic components.

- Calibration: Periodic calibration may be needed to ensure accurate temperature and pressure settings.

11. Applications

- Pipeline Construction: Used in the construction of pipelines for water, gas, and other fluids.

- Industrial Applications: Commonly used in various industrial sectors requiring thermoplastic pipe welding.

- Infrastructure Projects: Suitable for large-scale infrastructure projects where reliable and strong pipe joints are essential.

12. Cost and Investment

- Initial Cost: Generally higher than manual or semi-automatic machines due to advanced features and automation.

- Long-Term Savings: Can lead to cost savings in labor and increased efficiency over time.

Care and Maintenance Tips

1. Regular Cleaning: Keep the heating plate and other components clean to ensure optimal performance.

2. Check Calibration: Regularly check and calibrate temperature and pressure settings to maintain accuracy.

3. Inspect Components: Periodically inspect and replace worn or damaged components, such as seals and hydraulic hoses.

4. Follow Manufacturer Guidelines: Adhere to the manufacturer's maintenance and operation guidelines to ensure longevity and reliability.

Automatic butt fusion machines are essential for modern pipe welding operations, offering precision, efficiency, and reliability for creating strong, durable joints in thermoplastic pipes.
