Components and Design of Motor Protection Circuit Breakers

A Motor Protection Circuit Breaker (MPCB) is a specialized electrical device designed to protect electric motors from damage caused by electrical faults, overloads, or phase unbalance. Here's an overview of Motor Protection Circuit Breakers and their key features:

Functionality:

1. Protection Mechanisms:

  - Overload Protection: Monitors the current flowing through the motor and disconnects power if the current exceeds a preset threshold for a specified time period. This protects the motor windings from overheating due to prolonged overcurrent conditions.

  - Short Circuit Protection: Quickly interrupts power in the event of a short circuit fault, preventing damage to the motor and associated electrical components.

  - Phase Failure Protection: Detects phase loss or imbalance in three-phase motors, preventing damage caused by running the motor on an unbalanced power supply.

2. Operation:

  - Trip Mechanism: MPCBs typically employ thermal (bimetallic strip) and magnetic trip mechanisms to detect overcurrent and short circuit faults respectively.

  - Reset: Can be manually reset after tripping to restore power once the fault condition has been resolved.

3. Adjustability and Sensitivity:

  - Current Setting: Some MPCBs allow adjustable current settings to accommodate different motor ratings and starting currents.

  - Trip Class: Available in different trip classes (e.g., Class 10, Class 20) that specify the time-current characteristics for overload protection.

Components and Design:

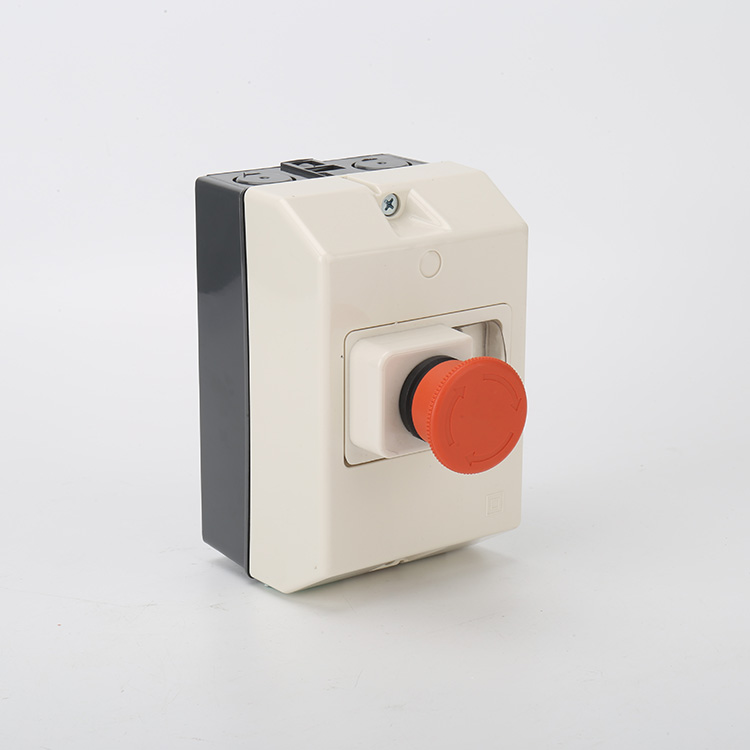

- Enclosure: MPCBs are housed in robust enclosures designed to withstand electrical and environmental stresses.

- Contact Mechanism: Utilizes contacts that open under fault conditions to disconnect power to the motor.

- Auxiliary Contacts: Optional auxiliary contacts may be included for remote monitoring or control applications.

- Test Button: Provides a means to manually test the tripping mechanism without applying a fault condition.

Applications:

- Industrial Motors: Protects motors used in industrial machinery, pumps, compressors, conveyor systems, and other equipment.

- HVAC Systems: Used in heating, ventilation, and air conditioning (HVAC) systems to protect fan motors and compressors.

- Mining and Heavy Machinery: Essential in applications where motors operate under varying load conditions and require robust protection against electrical faults.

Benefits:

- Reliability: Ensures continuous operation of motors by preventing damage from electrical faults.

- Safety: Enhances safety by reducing the risk of fire hazards and equipment damage.

- Maintenance: Helps in diagnosing motor issues and reducing downtime for repairs.

Considerations:

- Motor Rating: Select MPCBs based on the motor’s voltage, current rating, and horsepower to ensure compatibility and effective protection.

- Environmental Conditions: Consider the ambient temperature and installation environment to choose MPCBs with appropriate temperature ratings and protection levels (IP ratings).

- Compliance: Ensure MPCBs comply with relevant industry standards and regulations for electrical equipment safety.

Installation and Maintenance:

- Proper Installation: Follow manufacturer guidelines and wiring diagrams to ensure correct installation and reliable operation.

- Regular Testing: Periodically test MPCBs to verify proper operation of the trip mechanisms and ensure they respond correctly to fault conditions.

- Maintenance: Keep MPCBs clean and free from dust or debris that could affect performance.

Motor Protection Circuit Breakers play a crucial role in safeguarding electric motors and ensuring efficient operation of industrial and commercial machinery.
