Components and operation of a typical cement solid wall panel machine

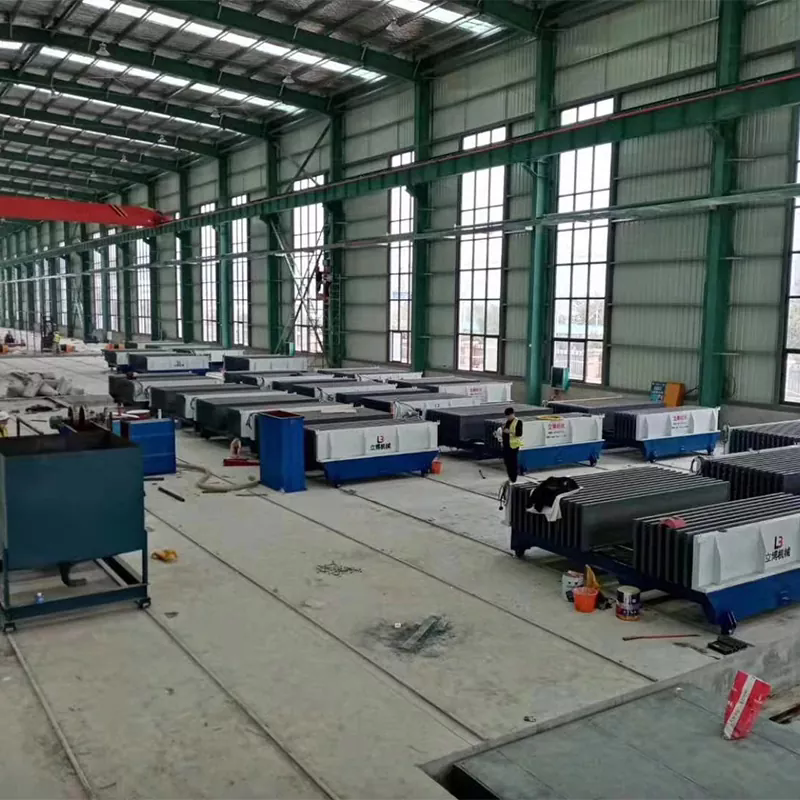

A cement solid wall panel machine is a specialized piece of equipment used in the manufacturing of cement-based solid wall panels. These panels are prefabricated building components used in construction for various applications such as exterior and interior walls, partitions, and structural elements. The machine automates the process of forming, curing, and cutting cement panels, resulting in efficient and consistent production. Here's an overview of the components and operation of a typical cement solid wall panel machine:

1. Raw Material Handling: The machine begins by handling raw materials required for panel production, primarily cement, aggregates (such as sand or gravel), water, and optional additives such as fibers or admixtures. These materials are typically stored in hoppers or silos and are metered and conveyed to the mixing station.

2. Mixing Station: At the mixing station, the raw materials are batched and mixed together to form a homogeneous cementitious mixture. The mixing process may involve the use of planetary mixers, paddle mixers, or other types of mixing equipment to ensure thorough blending and consistency of the mixture.

3. Panel Forming: Once the cementitious mixture is prepared, it is transferred to the panel forming section of the machine. Here, the mixture is poured into molds or forms that define the shape and dimensions of the cement panels. The forms may be stationary or traveling, depending on the design of the machine and the desired production output.

4. Compaction and Consolidation: After the cement mixture is poured into the forms, it undergoes compaction and consolidation to remove air voids and ensure proper density and strength of the panels. This may be achieved through vibration, hydraulic pressing, or other compaction methods integrated into the machine.

5. Curing: Once formed and compacted, the cement panels undergo a curing process to achieve the required strength and durability. Curing may involve the application of heat, steam, or moisture to accelerate hydration and curing of the cementitious mixture. The curing process may take place within the machine or in a separate curing chamber.

6. Panel Cutting and Finishing: After the panels are sufficiently cured, they are cut to the desired dimensions using cutting blades or saws integrated into the machine. The cutting process may also include trimming edges and adding surface finishes such as textures or coatings, depending on the application requirements.

7. Panel Stacking and Packaging: Finally, the finished cement panels are stacked, bundled, or packaged for transport and delivery to construction sites or storage facilities. Automated handling systems may be incorporated into the machine to facilitate stacking and packaging of the panels.

Overall, a cement solid wall panel machine streamlines the manufacturing process of cement panels, offering efficiency, precision, and consistency in panel production for various construction applications.
