Functionalities and Applications of Fiber Optic Couplers Splitters

Fiber optic couplers and splitters are crucial components in optical networks, enabling the distribution and management of optical signals. Here’s an overview of fiber optic couplers, splitters, their types, functionalities, and applications:

Fiber Optic Couplers:

1. Definition:

  - A fiber optic coupler is a passive optical device that combines or splits optical signals without the need for power or electronics.

  - It allows multiple optical fibers to be interconnected or to split a single fiber into multiple paths.

2. Types of Fiber Optic Couplers:

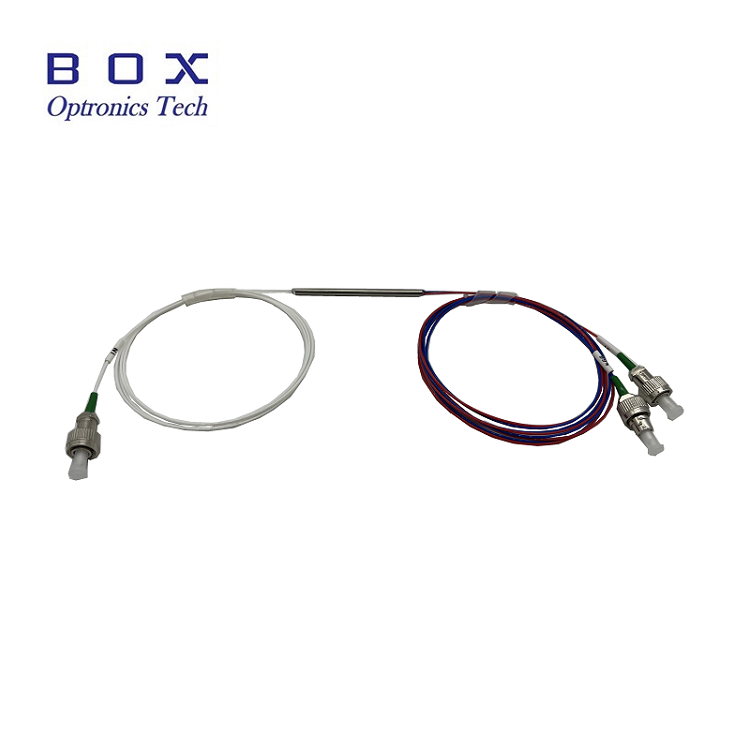

  - Fused Biconic Taper (FBT) Coupler:

    - Uses a tapered region where two fibers are fused together to combine or split signals.

    - Typically used for coupling two fibers together or splitting signals into multiple fibers with specific splitting ratios.

  - Planar Lightwave Circuit (PLC) Coupler:

    - Utilizes a waveguide structure on a flat substrate (silicon or glass) to split or combine optical signals.

    - Provides more precise control over splitting ratios and is suitable for high-density applications.

  - Tapered Coupler:

    - Uses a gradual tapering process to merge or split optical signals between fibers.

    - Offers low insertion loss and can handle various wavelength ranges.

  - Wavelength Division Multiplexing (WDM) Coupler:

    - Combines or separates different wavelengths of light into or from a single fiber.

    - Used in wavelength division multiplexing systems for transmitting multiple signals over a single fiber.

3. Functionality:

  - Couplers passively combine signals from multiple input fibers into a single output fiber or split a single input fiber into multiple output fibers.

  - They maintain signal integrity and minimize signal loss across the network.

4. Applications:

  - Telecommunications: Used in fiber optic networks for signal distribution, multiplexing, and demultiplexing.

  - Data Centers: Enable efficient distribution of optical signals within data center environments.

  - CATV (Cable Television): Facilitate signal distribution in cable TV systems for broadcasting and network distribution.

  - Sensors and Instrumentation: Used in optical sensors and measurement devices for signal processing and distribution.

Fiber Optic Splitters:

1. Definition:

  - A fiber optic splitter is a passive optical component that divides (or splits) an incoming optical signal into multiple output signals.

  - Splitters operate similarly to couplers but are designed specifically for dividing signals into multiple paths rather than combining signals.

2. Types of Fiber Optic Splitters:

  - 1xN Splitters: Split a single input fiber into multiple output fibers (e.g., 1x2, 1x4, 1x8, etc.).

  - 2xN Splitters: Split two input fibers into multiple output fibers (e.g., 2x4, 2x8, etc.).

3. Functionality:

  - Splitters distribute optical signals to multiple destinations or receivers, maintaining signal integrity and ensuring minimal loss.

  - They are crucial in passive optical networks (PONs) for delivering fiber optic services to multiple subscribers from a central location.

4. Applications:

  - FTTx Networks: Used in fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and fiber-to-the-curb (FTTC) deployments for broadband and telecommunications services.

  - Passive Optical Networks (PON): Enable efficient and cost-effective distribution of optical signals in telecommunications and broadband networks.

  - Network Monitoring: Used in optical monitoring systems and test setups for signal analysis and measurement.

Key Considerations:

1. Splitting Ratio:

  - Choose couplers or splitters with appropriate splitting ratios (e.g., 50:50, 70:30) based on the network requirements and signal distribution needs.

2. Insertion Loss and Return Loss:

  - Consider the insertion loss (signal loss during transmission) and return loss (signal reflected back) characteristics to ensure efficient signal transmission.

3. Wavelength Compatibility:

  - Verify that the couplers or splitters support the wavelength range of the optical signals being transmitted.

4. Environmental Conditions:

  - Select components that meet environmental standards (e.g., temperature range, humidity) for reliable operation in specific deployment environments.

Fiber optic couplers and splitters play vital roles in modern optical networks, facilitating efficient signal distribution, multiplexing, and connectivity. Understanding their types, functionalities, and applications helps in choosing the right components for building robust and scalable fiber optic infrastructures.
