Functions of a single-screw extruder

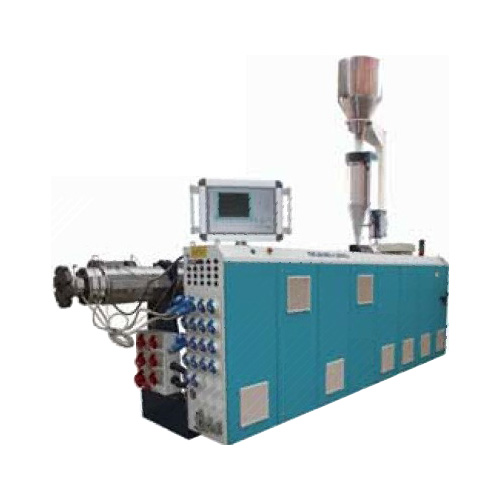

A single-screw extruder is a type of extrusion machine used in the plastics processing industry to melt, shape, and form thermoplastic materials into various products, such as pipes, profiles, sheets, and films. It is a crucial component in the extrusion process, allowing for continuous and efficient production of plastic products. Here is an overview of the key features and functions of a single-screw extruder:

Components of a Single-Screw Extruder:

1. Hopper: The hopper is the entry point for the raw material, typically in the form of plastic pellets or powder. It feeds the material into the extruder barrel.

2. Extruder Barrel: The extruder barrel is a long, cylindrical chamber through which the raw material travels. It is heated to facilitate the melting of the plastic material. The barrel is divided into multiple heating zones, each with its own temperature control.

3. Screw: The screw is a rotating helical shaft inside the barrel. Its primary function is to convey, compress, melt, and mix the plastic material as it moves along the barrel. The screw design can vary based on the specific requirements of the extrusion process.

4. Heating Elements: Electric or resistance heaters are used to heat the barrel. The temperature is controlled in different zones to gradually increase the temperature of the plastic material along the length of the barrel.

5. Cooling System: Some extruders have a cooling system, often with fans or water cooling, to control the temperature of specific zones, especially near the discharge end.

6. Die Head: The die head is located at the end of the barrel and shapes the melted plastic into the desired form. It determines the final geometry of the extruded product, such as the cross-sectional shape of a pipe or profile.

7. Screen Changer: The screen changer is a device that filters impurities or contaminants from the molten plastic before it passes through the die head. This helps ensure the quality of the extruded product.

8. Drive System: The extruder is powered by a motor that drives the rotation of the screw. The drive system controls the speed of the screw, influencing the throughput and residence time of the material in the extruder.

Operation of a Single-Screw Extruder:

1. Material Feeding: Plastic pellets or powder are fed into the hopper, which then conveys the material into the extruder barrel.

2. Melting and Mixing: The rotating screw conveys the plastic material through the barrel, where it is gradually melted and mixed. The heat generated by the barrel and the mechanical energy from the screw contribute to this process.

3. Pressure Build-Up: As the material progresses through the barrel, pressure increases, causing the melted plastic to become more homogeneous.

4. Extrusion through Die: The molten plastic is forced through the die head, which shapes it into the desired form. The extruded product then cools and solidifies as it exits the die.

5. Cutting and Cooling: The extruded product is cut to the desired length, and cooling mechanisms, such as water tanks or air cooling, are used to set the final shape.

Single-screw extruders are widely used due to their simplicity, versatility, and cost-effectiveness. However, for certain applications and processing requirements, twin-screw extruders with enhanced mixing capabilities may be preferred. The choice between single-screw and twin-screw extruders depends on factors such as the type of material, production volume, and desired product properties.
