Functions of AC/DC Power Adapter

An AC/DC power adapter, also known as a power supply or charger, is a device that converts alternating current (AC) from a wall outlet into direct current (DC) suitable for powering electronic devices. Here’s an overview of AC/DC power adapters, their functions, types, and applications:

Functions of AC/DC Power Adapter:

1. Voltage Conversion:

  - Converts standard household AC voltage (typically 100-240 volts AC) to the appropriate DC voltage required by the device (e.g., 5V, 9V, 12V, etc.).

2. Rectification and Regulation:

  - Rectifies AC voltage to DC voltage using diodes and regulates the output voltage to provide stable and consistent power to electronic devices.

3. Connector Compatibility:

  - Provides various connector types (such as barrel plugs, USB, or proprietary connectors) to match the input requirements of different devices.

4. Safety Features:

  - Includes protection mechanisms such as overvoltage protection, overcurrent protection, and thermal shutdown to prevent damage to the device being powered.

Types of AC/DC Power Adapters:

1. Wall Adapters:

  - Plug directly into a wall outlet and provide DC power through a cable terminated with a connector suitable for the device.

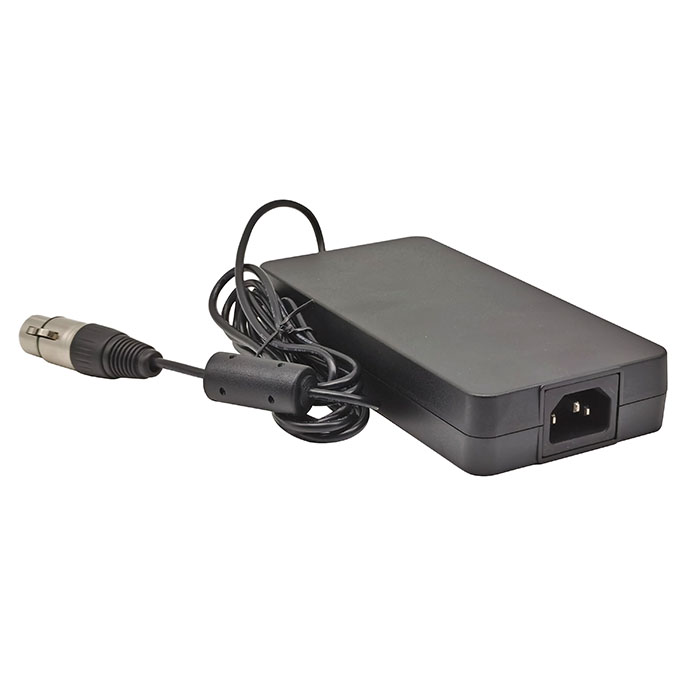

2. Desktop Adapters:

  - Larger units designed for more power-demanding applications, typically used in offices or industrial settings, often with higher wattage ratings.

3. USB Power Adapters:

  - Specifically designed to convert AC to USB DC power for charging smartphones, tablets, and other USB-powered devices.

4. Switching Power Supplies:

  - Efficient and lightweight units that use switching technology to convert AC to DC, suitable for a wide range of voltage and current requirements.

Applications of AC/DC Power Adapters:

- Consumer Electronics: Powering devices such as laptops, printers, routers, game consoles, and audio equipment.

- Mobile Devices: Charging smartphones, tablets, cameras, and portable media players using USB adapters.

- Industrial Equipment: Powering machinery, control systems, and sensors in industrial automation applications.

- Medical Devices: Providing power to medical equipment and devices in healthcare settings.

- Telecommunications: Powering networking equipment, modems, routers, and telecommunication devices.

Considerations When Choosing an AC/DC Power Adapter:

- Voltage and Current Ratings: Ensure the adapter's output voltage and current ratings match the requirements of the device to be powered.

- Connector Type and Polarity: Verify the connector type, size, and polarity (center positive or center negative) to ensure compatibility with the device.

- Safety and Certification: Look for adapters that comply with safety standards such as UL (Underwriters Laboratories) or CE (Conformité Européenne) for reliability and safety.

- Efficiency: Switching power supplies are generally more efficient than linear power supplies, reducing energy consumption and heat generation.

Advanced Features and Technologies:

- Energy Efficiency: Adapters with Energy Star ratings or compliant with international energy efficiency standards to minimize power consumption.

- Smart Adapters: Integration of smart charging technologies such as Quick Charge or Power Delivery for fast and efficient charging of compatible devices.

AC/DC power adapters play a crucial role in powering a wide range of electronic devices and equipment, providing efficient and regulated DC power from standard AC outlets. Understanding their types, applications, and considerations helps in selecting the right adapter for specific needs.
