How you can create a basic button control station

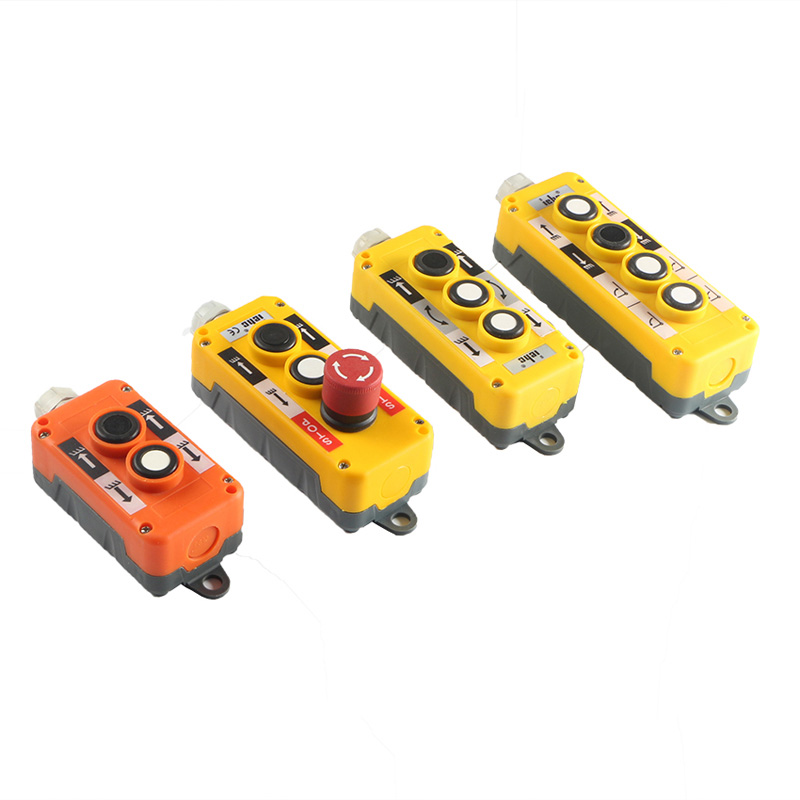

A button control station is a device used to control the operation of machinery or equipment, typically in industrial settings. It consists of one or more push buttons that are used to initiate specific functions or operations. Here's how you can create a basic button control station:

1. Materials and Tools:

  - Control station enclosure

  - Push buttons (momentary or maintained)

  - Emergency stop button

  - Pilot lights (optional)

  - Contact blocks

  - Wiring and cables

  - Terminal blocks or connectors

  - Labels or markers

  - Screwdrivers

  - Wire strippers and crimpers

  - Electrical tape or heat shrink tubing

  - Mounting hardware (screws, brackets, etc.)

2. Design and Layout:

  - Determine the layout and configuration of the push buttons and emergency stop button based on the functions you want to control.

  - Decide on the placement of the buttons within the control station enclosure for ease of access and operation.

3. Assembly:

  - Install the push buttons, emergency stop button, and any pilot lights into the control station enclosure according to your layout design.

  - Connect the push buttons, emergency stop button, and pilot lights to the appropriate contact blocks using wiring and cables.

  - Use wire strippers to strip the insulation from the ends of the wires, and crimp connectors onto the exposed wire ends.

  - Connect the wires to the contact blocks, ensuring proper polarity and secure connections.

  - Label each push button and the emergency stop button with its corresponding function using labels or markers for easy identification.

4. Wiring:

  - Route the wiring neatly within the control station enclosure, ensuring that there are no loose or exposed wires that could cause a short circuit.

  - Use electrical tape or heat shrink tubing to insulate and protect the wiring connections.

  - Connect the wiring to the terminal blocks or connectors inside the control station enclosure, ensuring proper routing and organization.

5. Testing:

  - Before closing the control station enclosure, test each push button and the emergency stop button to ensure that they operate correctly and control the machinery as intended.

  - Test any pilot lights to ensure they illuminate properly when their corresponding function is activated.

  - Double-check all wiring connections and buttons for any loose connections or issues.

6. Mounting:

  - Once testing is complete, mount the control station enclosure in a convenient and accessible location near the machinery or equipment to be controlled.

  - Use mounting hardware such as screws or brackets to secure the control station enclosure in place.

7. Final Checks:

  - Perform a final visual inspection of the button control station assembly to ensure that everything is securely mounted and properly connected.

  - Confirm that all labels are legible and correctly identify the functions of each push button and the emergency stop button.

By following these steps, you can create a button control station that provides reliable and safe control of machinery and equipment. Make sure to adhere to all relevant safety standards and regulations during the design and installation process. If you're unsure about any aspect of the assembly, consult with a qualified electrician or engineer for assistance.
