Plastic Moulded Case Circuit Breakers: A Comprehensive Guide to Modern Electrical Protection

In the ever-evolving world of electrical engineering, ensuring safety and reliability in electrical circuits is crucial. One of the key components in achieving this is the Plastic Moulded Case Circuit Breaker (MCCB). Designed to protect electrical systems from overloads and short circuits, MCCBs offer a range of benefits and are widely used in various applications. In this blog, we’ll explore what plastic moulded case circuit breakers are, how they work, their advantages, and their applications in modern electrical systems.

What is a Plastic Moulded Case Circuit Breaker?

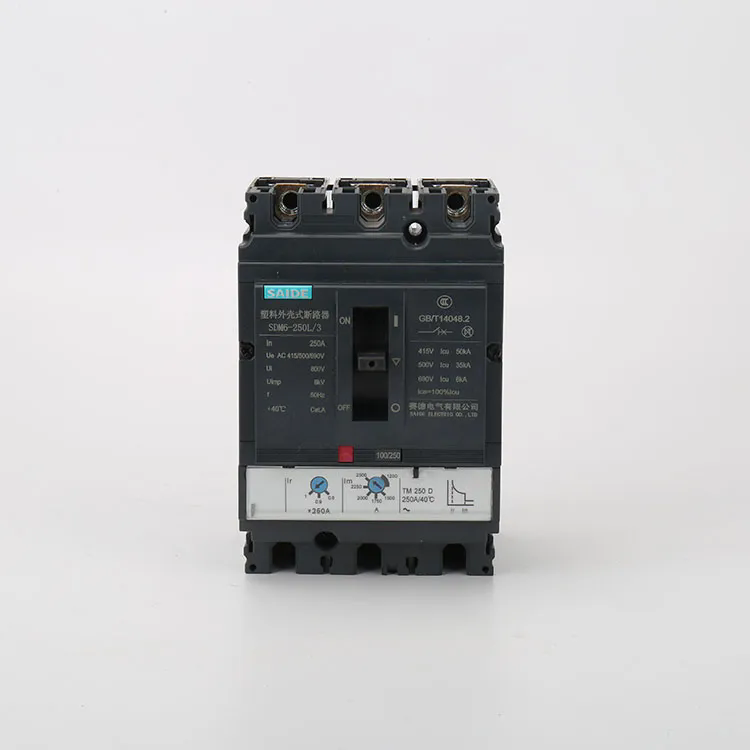

A Plastic Moulded Case Circuit Breaker (MCCB) is a type of circuit breaker housed in a plastic casing designed to protect electrical circuits from overloads and short circuits. Unlike traditional circuit breakers, which may use metal enclosures, plastic moulded case circuit breakers use high-quality, durable plastic for their casings. This design choice offers various benefits, including improved insulation, reduced weight, and enhanced resistance to environmental factors.

How Do Plastic Moulded Case Circuit Breakers Work?

Plastic moulded case circuit breakers function through the following key mechanisms:

1. Current Monitoring: MCCBs continuously monitor the electrical current flowing through the circuit. They are designed to trip (interrupt the circuit) when the current exceeds a predetermined threshold, indicating a fault condition such as an overload or short circuit.

2. Tripping Mechanism: The tripping mechanism of an MCCB is typically based on thermal and electromagnetic principles:

  - Thermal Trip: A bimetallic strip within the breaker heats up and bends when the current exceeds its rated capacity. This bending action triggers the tripping mechanism to open the circuit.

  - Electromagnetic Trip: In the event of a short circuit, a solenoid or electromagnetic mechanism rapidly trips the circuit breaker to disconnect the circuit and prevent damage.

3. Arc Quenching: When the circuit breaker trips, it creates an electrical arc between the contacts. The plastic casing helps to contain and quench this arc, ensuring that it does not cause further damage or pose a safety hazard.

4. Resetting: After the fault has been cleared, the circuit breaker can be manually or automatically reset to restore normal operation. This feature allows for quick recovery without the need for replacing the breaker.

Benefits of Plastic Moulded Case Circuit Breakers

1. Durability and Insulation: The plastic casing of MCCBs provides excellent insulation properties, reducing the risk of electrical shock and enhancing safety. The plastic material is also resistant to corrosion and environmental damage, ensuring long-lasting performance.

2. Lightweight Design: Compared to metal-cased circuit breakers, plastic moulded case circuit breakers are lighter, making them easier to handle and install. This can be particularly advantageous in applications where space and weight are critical considerations.

3. Cost-Effective: Plastic moulded case circuit breakers often offer a more cost-effective solution compared to their metal counterparts. The use of plastic for the casing reduces manufacturing costs, which can translate into lower prices for consumers.

4. Enhanced Safety: The plastic casing is designed to contain and extinguish electrical arcs, reducing the risk of fires and other safety hazards. Additionally, the plastic material helps to prevent accidental contact with live electrical parts.

5. Design Flexibility: The plastic moulding process allows for more complex and customized designs, enabling manufacturers to produce circuit breakers with specific features and configurations tailored to various applications.

Applications of Plastic Moulded Case Circuit Breakers

1. Residential Electrical Systems: MCCBs are commonly used in residential electrical panels to protect household circuits from overloads and short circuits. Their compact design and reliable performance make them suitable for home electrical systems.

2. Commercial Buildings: In commercial settings, MCCBs are used to protect electrical distribution systems, including lighting, HVAC systems, and power outlets. Their ability to handle higher currents and provide reliable protection is essential for maintaining safe and efficient operations.

3. Industrial Facilities: Plastic moulded case circuit breakers are widely used in industrial environments to safeguard machinery, equipment, and electrical distribution networks. Their durability and resistance to harsh conditions make them ideal for industrial applications.

4. Data Centers: Data centers rely on MCCBs to protect critical electrical systems, including servers, cooling systems, and backup power supplies. The reliability and safety features of MCCBs are crucial for preventing downtime and ensuring uninterrupted operations.

5. Renewable Energy Systems: MCCBs are employed in renewable energy systems, such as solar power installations and wind turbines, to protect the electrical components and ensure the safe operation of these systems.

Choosing the Right Plastic Moulded Case Circuit Breaker

When selecting a plastic moulded case circuit breaker, consider the following factors:

1. Current Rating: Ensure that the circuit breaker’s current rating matches the requirements of your application. It should be capable of handling the maximum expected current without tripping under normal conditions.

2. Voltage Rating: Verify that the circuit breaker’s voltage rating is suitable for your electrical system. It should be capable of safely interrupting the circuit at the maximum voltage.

3. Breaking Capacity: The breaking capacity refers to the circuit breaker’s ability to interrupt fault currents. Choose a breaker with sufficient breaking capacity to handle potential fault conditions in your system.

4. Physical Size and Mounting: Consider the size and mounting options of the circuit breaker to ensure it fits within your system’s design and installation requirements.

5. Additional Features: Some MCCBs come with additional features, such as adjustable trip settings, remote monitoring capabilities, and built-in protection mechanisms. Evaluate these features based on your specific needs.

Conclusion

Plastic Moulded Case Circuit Breakers are a versatile and reliable solution for protecting electrical circuits in a wide range of applications. Their durable plastic casing, lightweight design, and cost-effectiveness make them a popular choice for residential, commercial, and industrial settings. By understanding how MCCBs work, their benefits, and how to choose the right one for your needs, you can ensure the safety and efficiency of your electrical systems. Investing in high-quality MCCBs helps to prevent damage, reduce maintenance, and enhance the overall performance of your electrical infrastructure.
