The Importance and Advantages of Threaded Ball Valves

In various industries, valves play a crucial role in controlling the flow of liquids and gases through pipelines. Among the many types of valves used in industrial applications, threaded ball valves are one of the most popular and reliable choices. These valves are widely used in residential, commercial, and industrial settings due to their simplicity, efficiency, and ability to handle a variety of fluids under different pressures and temperatures. In this blog, we will explore what threaded ball valves are, how they work, and why they are so highly regarded in fluid control systems.

What is a Threaded Ball Valve?

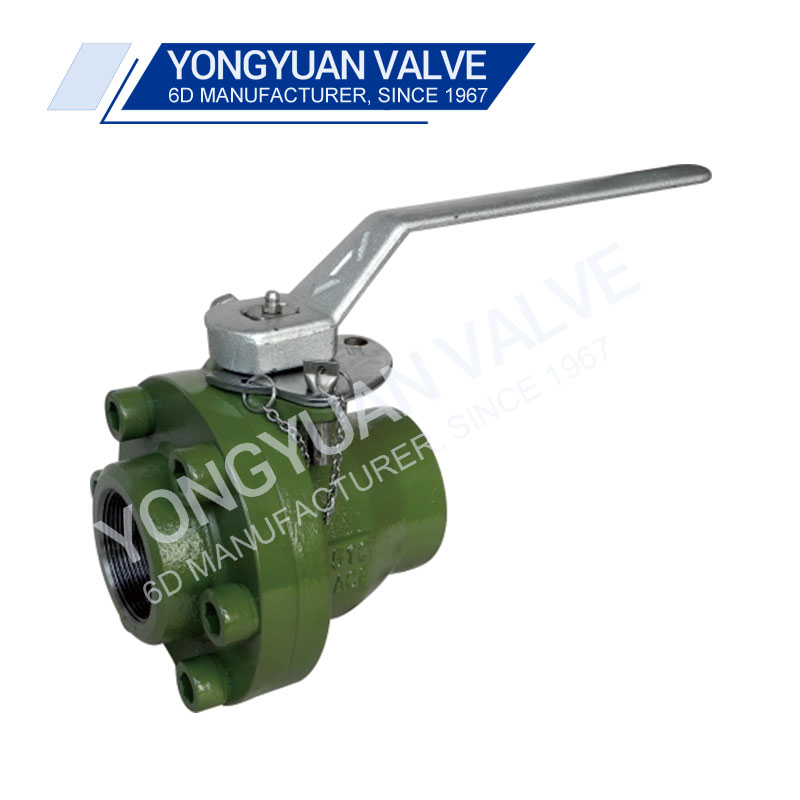

A threaded ball valve is a type of valve that controls the flow of liquids or gases through a pipe by using a spherical ball with a hole in the middle. The ball is rotated inside the valve body to either allow or block the flow of the fluid. The most notable feature of a threaded ball valve is its connection type. Unlike flanged or welded valves, threaded ball valves are designed to connect directly to pipes through threaded ends, which makes installation faster and simpler.

Threaded ball valves are typically made from durable materials such as stainless steel, brass, or PVC, depending on the application requirements. The design of these valves allows them to provide reliable performance with minimal maintenance.

How Do Threaded Ball Valves Work?

The operation of a threaded ball valve is straightforward. When the valve handle is turned, the spherical ball inside the valve rotates. Depending on the position of the ball, it either aligns the hole with the pipe, allowing fluid to pass through, or rotates to a position where the hole is blocked, stopping the flow.

Threaded ball valves are usually quarter-turn valves, meaning the handle needs to be turned only 90 degrees (one-quarter of a full circle) to fully open or close the valve. This makes them easy to operate and ideal for quick shut-off applications.

The ball valve's body is typically designed to accommodate the flow of fluids with minimal resistance, which helps maintain pressure and flow rates within the desired parameters.

Types of Threaded Ball Valves

Threaded ball valves come in different designs, each suited for specific applications:

1. Two-Way Threaded Ball Valve:

  The most common type of threaded ball valve, a two-way valve has two ports: one for the inlet and one for the outlet. This design is used to control the flow of fluid from one point to another, typically in systems requiring a simple on/off mechanism.

2. Three-Way Threaded Ball Valve:

  A three-way valve has three ports and can be used to control the flow between three different points. This type of valve is ideal for applications where fluid needs to be directed to multiple pathways or mixed together. It is often used in systems like heating and cooling or for balancing fluid distribution in industrial processes.

3. Full-Bore vs. Reduced-Bore Ball Valve:

  Full-bore valves have a ball with a hole the same size as the pipe diameter, allowing for unrestricted flow when the valve is open. Reduced-bore ball valves, on the other hand, have a smaller hole in the ball, which limits the flow slightly but can still be effective in many applications where flow control is important.

Advantages of Threaded Ball Valves

1. Ease of Installation:

  One of the main advantages of threaded ball valves is their ease of installation. Unlike flanged or welded valves, which may require additional hardware or complex installation procedures, threaded ball valves simply screw into place. This reduces installation time and costs, especially in smaller systems where threading is commonly used.

2. Reliable and Durable:

  Threaded ball valves are known for their long lifespan and reliable performance. The solid, durable materials used in their construction, combined with their simple design, ensure that these valves can withstand high pressures, temperatures, and aggressive fluids. This makes them a good choice for industries like oil and gas, chemical processing, and water treatment.

3. Minimal Maintenance:

  These valves are designed with fewer moving parts than other types of valves, which means less wear and tear over time. The ball inside the valve is often self-lubricating, which helps reduce friction and extend the valve's life. As a result, threaded ball valves require less maintenance compared to other valve types, making them cost-effective in the long run.

4. Compact Design:

  Threaded ball valves are relatively compact, making them suitable for applications where space is limited. The small size and simple operation allow them to be installed in tight spaces without sacrificing performance or ease of use.

5. Quick and Easy Operation:

  Threaded ball valves are typically quarter-turn valves, meaning they can be fully opened or closed with just a 90-degree turn of the handle. This makes them ideal for situations where quick and easy operation is required, such as in emergency shut-off situations or systems that need to be frequently adjusted.

6. Versatility:

  Threaded ball valves are incredibly versatile and can handle a wide range of fluids, from water and oil to chemicals and gases. Depending on the material used to construct the valve (such as brass, stainless steel, or PVC), threaded ball valves can be tailored to suit the specific needs of different industries and applications.

Applications of Threaded Ball Valves

Threaded ball valves are used in various industries and applications, including:

1. Plumbing and Residential Use:

  Threaded ball valves are commonly used in plumbing systems to control water flow. Their simple on/off functionality makes them ideal for use in household plumbing systems and for water supply applications.

2. Oil and Gas Industry:

  In the oil and gas industry, threaded ball valves are used to control the flow of oil, gas, and other hydrocarbons. These valves can handle high pressures and temperatures, making them suitable for both upstream and downstream applications.

3. Chemical Processing:

  Chemical plants use threaded ball valves to control the flow of chemicals, solvents, and other liquids. The materials used in threaded ball valves, such as stainless steel or PVC, can be selected to resist corrosion from aggressive fluids.

4. Food and Beverage Industry:

  In food and beverage manufacturing, threaded ball valves are used to control the flow of liquids and gases in production lines. The clean and simple design of these valves ensures they meet sanitary requirements in the food industry.

5. Water Treatment Plants:

  Water treatment facilities rely on threaded ball valves to control the flow of water and other treatment chemicals. These valves provide reliable operation under varying flow conditions.

Conclusion

Threaded ball valves are an essential component in many industrial and residential applications due to their simple design, reliability, and ease of installation. With their efficient flow control, durability, and versatility, they provide an excellent solution for a wide range of fluid management systems. Whether you're working in oil and gas, chemical processing, water treatment, or plumbing, threaded ball valves are a smart investment that ensures long-lasting performance and minimal maintenance.
