Understanding Normally Open Solenoid Valves: Functionality and Applications

In various industrial and mechanical systems, controlling the flow of fluids is crucial for optimal performance and efficiency. Among the many components used for fluid control, the Normally Open Solenoid Valve stands out as a key element due to its simplicity and effectiveness. Whether you’re working in automation, HVAC systems, or any other field that requires precise fluid management, understanding the functionality and applications of Normally Open Solenoid Valves can greatly benefit your operations. In this blog, we’ll explore what Normally Open Solenoid Valves are, how they work, their key features, and their diverse applications.

What is a Normally Open Solenoid Valve?

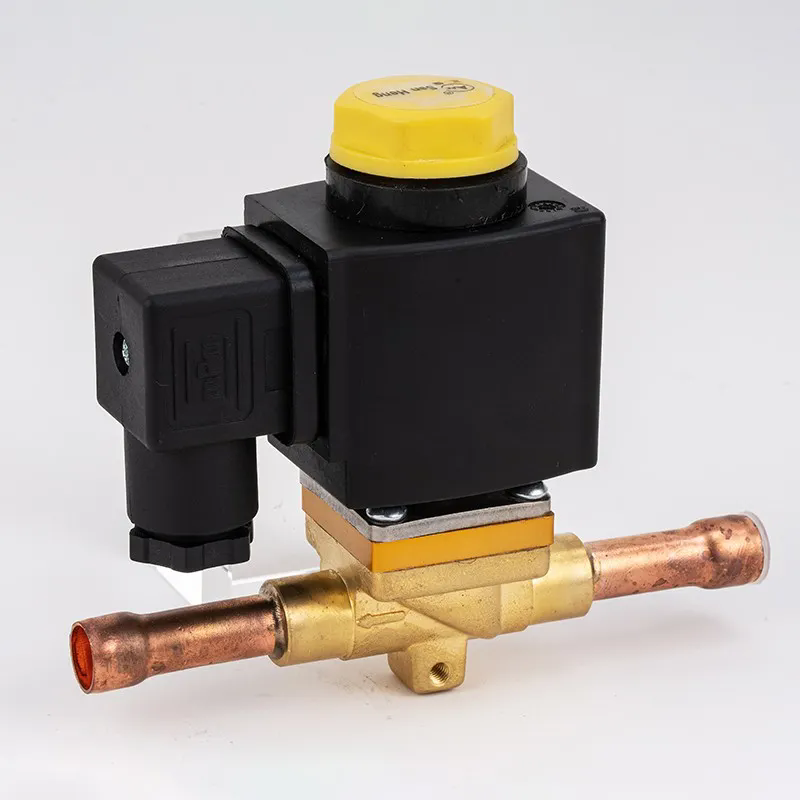

A Normally Open Solenoid Valve is an electromechanical valve used to control the flow of fluids in a piping system. As its name suggests, the valve is normally open when de-energized, meaning that fluid can flow through it by default. When the solenoid coil is energized, it actuates the valve, closing it and stopping the flow of fluid. This type of valve is commonly used in applications where the default state of the valve should allow fluid flow, and the flow needs to be controlled or interrupted by electrical signals.

How Does a Normally Open Solenoid Valve Work?

The operation of a Normally Open Solenoid Valve involves the following key components and steps:

1. Solenoid Coil: The valve is equipped with a solenoid coil, which is an electromagnetic component. When electrical current is applied to the coil, it generates a magnetic field.

2. Plunger and Spring Mechanism: Inside the valve body, there is a plunger (or actuator) and a spring. The spring keeps the valve in the normally open position when the solenoid is not energized.

3. Valve Seat and Orifice: The valve has a seat and an orifice that controls the flow of fluid. When the valve is in the open position, the orifice allows fluid to pass through.

4. Actuation: When the solenoid coil is energized, the magnetic field pulls the plunger against the spring force, moving it to the closed position. This action seals the valve seat and prevents fluid from flowing through the orifice.

5. De-energization: When the electrical current is removed, the magnetic field collapses, and the spring pushes the plunger back to the open position, allowing fluid to flow again.

Key Features of Normally Open Solenoid Valves

1. Default Open State

The primary feature of Normally Open Solenoid Valves is their default open state. When not energized, the valve remains open, allowing continuous fluid flow. This feature is beneficial in applications where maintaining a continuous flow is critical.

2. Electrically Controlled Operation

The valve’s operation is controlled electrically, allowing for precise and automated control of fluid flow. This feature enhances system efficiency and reduces manual intervention.

3. Quick Response Time

Normally Open Solenoid Valves offer a quick response time due to their electromechanical actuation. This rapid actuation is essential for applications requiring fast and reliable control of fluid flow.

4. Versatile Applications

These valves are available in various sizes, materials, and configurations, making them suitable for a wide range of applications. They can handle different types of fluids, including gases, liquids, and corrosive substances.

5. Durable Construction

Typically made from high-quality materials such as brass, stainless steel, or plastic, Normally Open Solenoid Valves are designed to withstand harsh operating conditions and offer long-lasting performance.

Benefits of Using Normally Open Solenoid Valves

1. Automatic Fluid Control

The electrical control of Normally Open Solenoid Valves allows for automatic and remote control of fluid flow. This capability simplifies the management of complex systems and enhances overall operational efficiency.

2. Energy Efficiency

By allowing continuous fluid flow when de-energized and only using energy to close the valve, these solenoid valves contribute to energy efficiency. They minimize the need for constant electrical power, reducing operational costs.

3. Enhanced System Safety

With their fail-safe design, Normally Open Solenoid Valves can enhance system safety. In the event of a power failure or electrical malfunction, the valve defaults to the open position, allowing fluid to flow and preventing potential hazards.

4. Reduced Maintenance

The simple design and reliable operation of Normally Open Solenoid Valves lead to reduced maintenance requirements. Their durable construction and low wear-and-tear contribute to longer service intervals.

5. Precise Flow Control

These valves provide precise control over fluid flow, allowing for accurate regulation of system parameters. This precision is crucial in applications requiring exact fluid management.

Applications of Normally Open Solenoid Valves

1. Automated Irrigation Systems

In agricultural irrigation systems, Normally Open Solenoid Valves control the flow of water to different zones. They allow for automatic watering schedules and precise control of water distribution.

2. HVAC Systems

In heating, ventilation, and air conditioning (HVAC) systems, these valves regulate the flow of refrigerants, air, or water. They help maintain optimal temperature and pressure levels within the system.

3. Industrial Automation

Normally Open Solenoid Valves are used in industrial automation to control the flow of gases, liquids, or steam in various manufacturing processes. They ensure efficient operation and accurate control in automated production lines.

4. Medical Equipment

In medical devices, such as dialysis machines and respiratory equipment, these valves manage the flow of fluids and gases, contributing to the safe and reliable operation of the equipment.

5. Water Treatment Systems

In water treatment plants, Normally Open Solenoid Valves control the flow of water and chemicals during various treatment stages. They help ensure proper chemical dosing and efficient water processing.

6. Automotive Applications

In automotive systems, these valves are used to control fuel flow, air intake, and other fluids. Their precise control is essential for optimal vehicle performance and emissions control.

Installation and Maintenance Tips

1. Correct Sizing

Choose the appropriate size of the solenoid valve for your application to ensure optimal performance. Refer to the manufacturer’s specifications and system requirements for proper sizing.

2. Proper Installation

Install the valve according to the manufacturer’s instructions, ensuring correct orientation and alignment. Follow guidelines for electrical connections and piping to avoid leaks and malfunctions.

3. Regular Inspection

Inspect the valve regularly for signs of wear, leakage, or damage. Perform routine maintenance to ensure reliable operation and extend the valve’s lifespan.

4. Clean and Lubricate

Keep the valve clean and free from debris. Lubricate moving parts as recommended to maintain smooth operation and prevent sticking or jamming.

5. Test Functionality

Periodically test the valve’s functionality to ensure it operates as expected. Check for proper actuation and response to electrical signals.

Conclusion

The Normally Open Solenoid Valve is a vital component in many fluid control systems, offering automatic, efficient, and precise management of fluid flow. Its default open state, quick response time, and durable construction make it a valuable asset in a variety of applications, from automated irrigation and HVAC systems to industrial automation and medical equipment. By understanding the features, benefits, and applications of Normally Open Solenoid Valves, you can enhance the performance and efficiency of your fluid control systems. Embrace the capabilities of these versatile valves and experience the advantages they bring to your operations.
