When it comes to lifting or rigging heavy loads, a snatch block is one of the most essential pieces of equipment in the toolbox. Whether you're working in construction, towing, or even recreational activities like off-roading, a snatch block can make your task easier and more efficient. But what exactly is a snatch block, how does it work, and when should you use it?
In this blog, we will explore all the important details about snatch blocks, from their design and functionality to their various applications and benefits.
1. What is a Snatch Block?
What exactly is a snatch block?

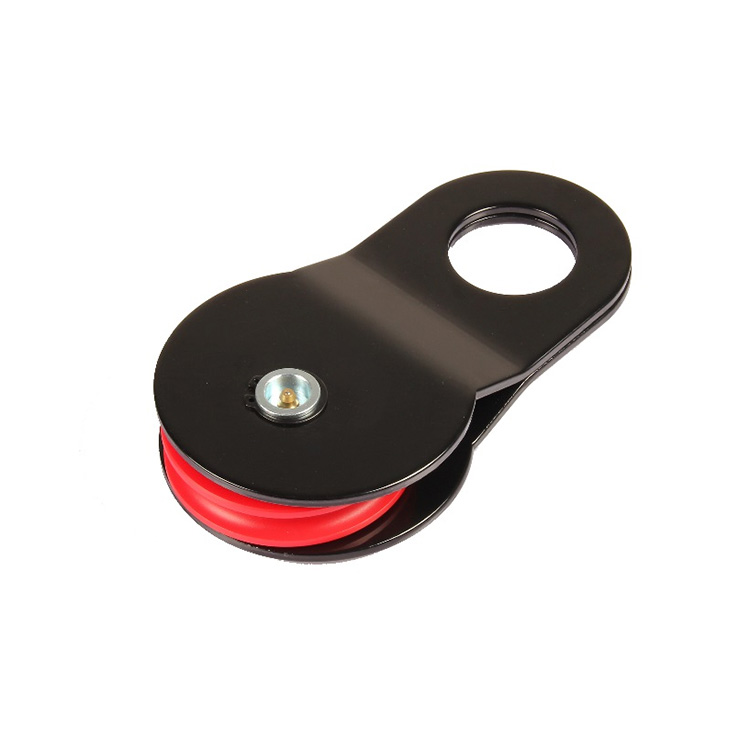

A snatch block is a type of pulley system used to change the direction of a rope or cable while simultaneously increasing the lifting capacity. It features a movable side or split block that allows you to quickly insert a rope or cable, and then securely close it, ensuring the rope stays in place during operation.
The block usually consists of:
- A groove for the rope or cable.
- A sheave (the rotating wheel inside) that helps guide the rope smoothly.
- A locking mechanism (often a pin or latch) to secure the rope inside the block.
Snatch blocks come in various sizes and materials, including steel, aluminum, and composite materials, making them adaptable for a wide range of heavy-duty and light-duty applications.
2. How Does a Snatch Block Work?
How does a snatch block actually work to help with lifting or towing?
The primary purpose of a snatch block is to redirect the rope or cable around corners or obstacles, while also increasing the mechanical advantage during lifting or pulling.
Here’s how it works in practice:
1. Rope or Cable Routing: You insert the rope or cable through the groove of the snatch block and close it.
2. Redirecting the Force: The pulley system inside the snatch block allows you to change the direction of the cable, making it easier to maneuver the load around an obstacle.
3. Increasing Load Capacity: By using a snatch block, you can double the lifting capacity (or pulling force) by creating a block-and-tackle system. This gives you greater control over the load, reducing strain on your equipment and allowing you to lift or pull heavier weights.
In essence, a snatch block functions like a pulley but adds the versatility of being easily adjustable and capable of increasing the lifting or pulling capacity.
3. Why Should You Use a Snatch Block?
What are the advantages of using a snatch block in lifting or towing operations?
There are several benefits to using a snatch block, whether you're working with a winch, towing vehicle, or any other rigging system. Here are some of the key advantages:
1. Increased Lifting and Towing Capacity:
- A snatch block allows you to double the lifting or pulling capacity of your rope or winch system. This is crucial in situations where you need to lift or tow very heavy loads that your equipment alone cannot handle.
2. Improved Control:
- By using a snatch block to change the direction of the rope, you gain better control over the load. This is particularly useful in tight or confined spaces where direct pulling may not be feasible.
3. Reduced Wear on Equipment:
- Snatch blocks help distribute the load more evenly, reducing the strain on your winch, rope, or other lifting gear. This can help extend the life of your equipment by preventing overloading and excessive wear.
4. Flexibility in Rigging:
- The adjustable nature of snatch blocks makes them incredibly versatile. You can easily change the direction of the rope or cable, rigging the system to fit your needs in a variety of applications.
5. Safety:
- By allowing for more controlled lifting and towing, snatch blocks can reduce the risk of accidents or damage to equipment. The increased mechanical advantage also means less effort is required, minimizing the likelihood of errors.
4. When Should You Use a Snatch Block?
In which scenarios should you consider using a snatch block?
Snatch blocks are used in a variety of applications, but they are most commonly used in the following situations:
1. Vehicle Recovery and Towing:
- When off-roading or recovering a stuck vehicle, a snatch block can help redirect the winch cable, giving you extra pulling power to recover a vehicle that is deeply stuck in mud or snow.
2. Construction and Heavy Lifting:
- In construction, snatch blocks are often used to lift heavy materials or equipment. By setting up a block-and-tackle system with a snatch block, you can increase the load capacity and control the movement of large objects.
3. Marine and Boating Applications:
- In boating and maritime settings, snatch blocks are used to alter the direction of ropes and assist with winch lines during docking, anchoring, and pulling heavy objects.
4. Rigging and Hoisting:
- In rigging applications, snatch blocks can help change the direction of the hoisting line to lift heavy equipment or objects more efficiently and safely.
5. Off-road Recovery:
- Snatch blocks are frequently used in off-road recovery to reroute the winch cable and gain additional pulling force when pulling a vehicle from a difficult terrain.
5. How to Use a Snatch Block Safely?
What safety precautions should you take when using a snatch block?
As with any heavy-duty rigging equipment, proper safety precautions must be followed when using a snatch block. Here are some important tips to ensure safe operation:
1. Choose the Right Size Snatch Block:
- Ensure the snatch block is rated for the load you are working with. Always check the block’s load capacity to ensure it can handle the expected load without failure.
2. Inspect the Equipment:
- Before use, inspect the snatch block, rope, and winch for any damage or wear. Check the sheave for smooth rotation and ensure the locking mechanism is working properly.
3. Use Proper Rigging Techniques:
- When setting up the snatch block, make sure the rope or cable runs smoothly and is securely in place. Avoid sharp angles or kinks in the rope, as these can cause excessive wear and reduce the effectiveness of the system.
4. Keep Clear of the Cable:
- Always stay clear of the cable and avoid standing directly in line with the rope or winch during operation. Ropes and cables can snap under high tension, causing injury or damage.
5. Use Proper PPE:
- Wear appropriate personal protective equipment (PPE), such as gloves, helmets, and safety goggles, when working with heavy lifting or towing equipment.
6. Types of Snatch Blocks
Are there different types of snatch blocks available?
Yes, snatch blocks come in different designs, sizes, and materials to suit various applications. Some common types include:
1. Steel Snatch Blocks:
- These are the most durable and commonly used in heavy-duty applications, such as construction or towing. Steel snatch blocks are designed to handle very high loads and extreme conditions.
2. Aluminum Snatch Blocks:
- Aluminum blocks are lighter and more portable than steel blocks, making them ideal for lighter tasks or applications where weight is a consideration, such as in off-roading.
3. Double-Pulley Snatch Blocks:
- These blocks contain two sheaves (pulleys), allowing for the use of a double line, which increases the mechanical advantage and load capacity.
4. Multi-Purpose Snatch Blocks:
- These versatile blocks can handle various ropes and cables and are designed to be adaptable in different situations. They can be used in both heavy and light-duty operations.
7. Conclusion
Is a snatch block worth the investment?
Absolutely! Whether you’re lifting heavy objects, recovering a vehicle, or towing in difficult terrain, a snatch block offers significant benefits. It increases your lifting and towing capacity, improves control, and reduces strain on your equipment, making it an invaluable tool in a variety of industries and activities.
By understanding the key benefits, when to use a snatch block, and following proper safety precautions, you can maximize its efficiency and ensure that you get the most out of this powerful rigging tool.
